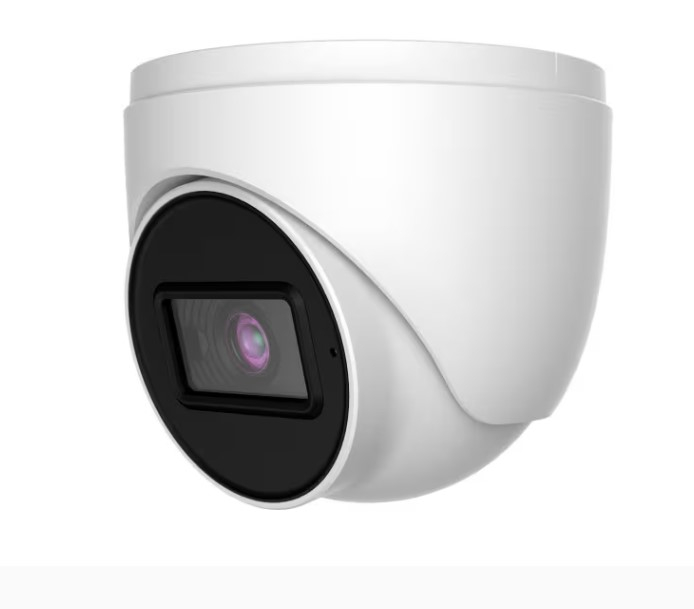

Camera
Image Sensor 1 / 3CMOS
Resolution 2MP
Image Size 1920 x 1080
Video Output AHD / TVI /CVI/CVBS
Image System PAL / NTSC
Electronic Shutter Auto; 1 / 50s ~ 1 / 100000s ( PAL );
1 / 60s ~ 1 / 100000s ( NTSC )
IR Distance 10 ~20 m
Frame Rate 30fps(60Hz); 25fps (50Hz)
Min. Illumination 0 lux (IR ON)
Lens 2.8 mm
Lens Mount M12
S / N Ratio ?52dB ( AGC OFF )
Ingress Protection IP 67
Functions
Function Control OSD ( COC Control )
Day & Night ICR
Digital WDR Yes
Digital DNR Yes (2D/3D DNR)
AGC Yes
Auto White Balance Yes
BLC Yes
Front Light Compensation Yes
Defog No
HLC No
Sharpness Yes
Mirror No
Smart IR Yes
Image Setting Yes
Defect Correction Auto
Language Chinese and English
Angle Adjustment Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360°
Others
Power Supply DC12V ( ą 10% )
Power Consumption IR OFF : < 1W; IR ON : < 3W
Working Environment 30 °C ~ 50 °C, 10 % ~ 90 % (relative humidity)
Dimensions ( mm ) ? 94.6 x 82.8
Weight ( net ) Approx. 0.25KG
